Complete catalogue

The full Ocean Voyager catalogue.

Voyage data recorders, speed logs, repeater displays, navigation instruments and marine data handling equipment — all designed for the working bridge.

4 Recorder Series5 Repeater Displays1 Repeater Units9 Marine Data Handling

Recorder Series

04 PRODUCTS

Type-approved voyage data recorders in full, simplified and light variants for every vessel class and flag-state requirement.

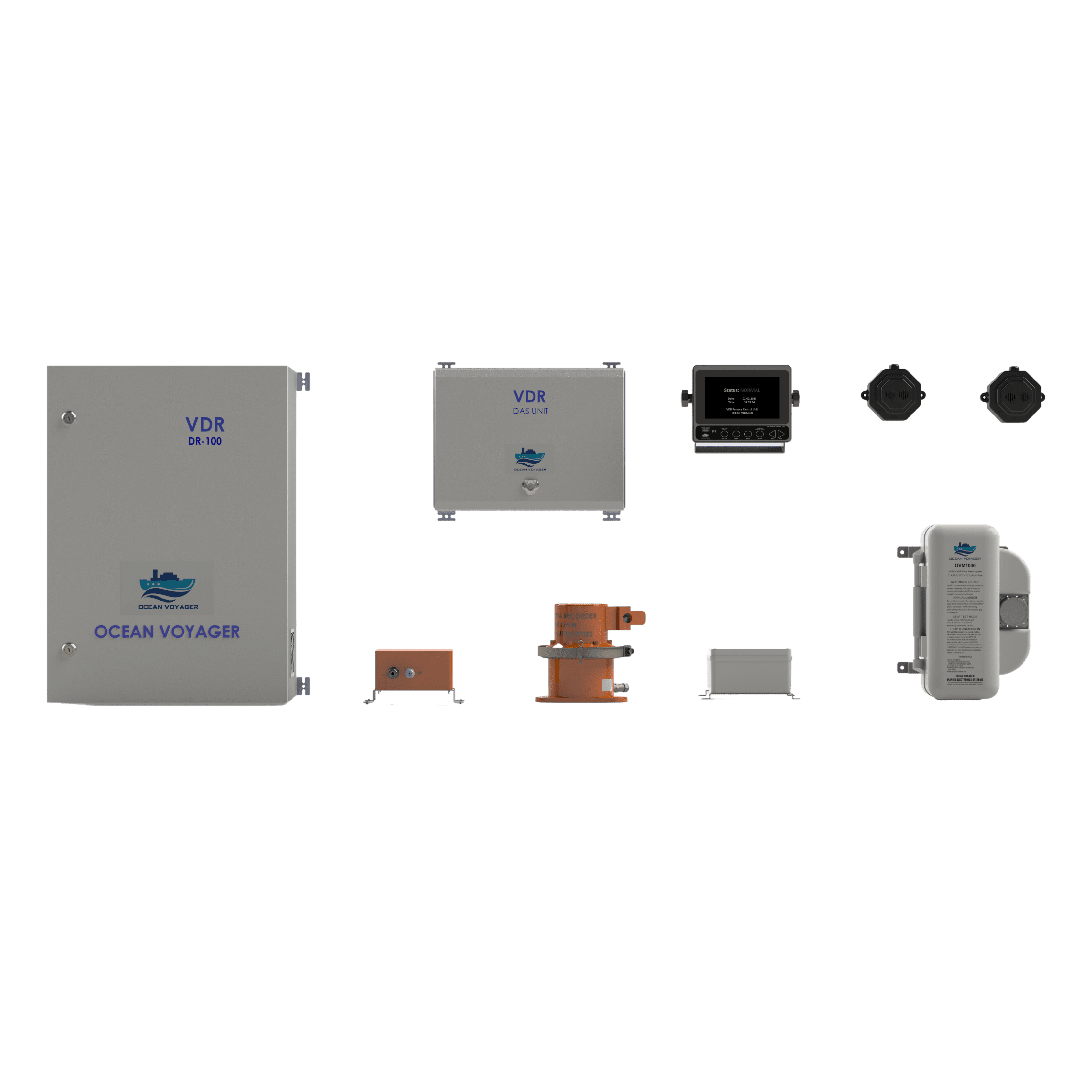

Voyage Data Recorder

Voyage Data Recorder

The flagship full VDR, with a complete sensor suite, triple final recording media and a fixed protective capsule for SOLAS-class newbuilds and retrofits.

IMO MSC.333(90)IEC 61996-1:2013

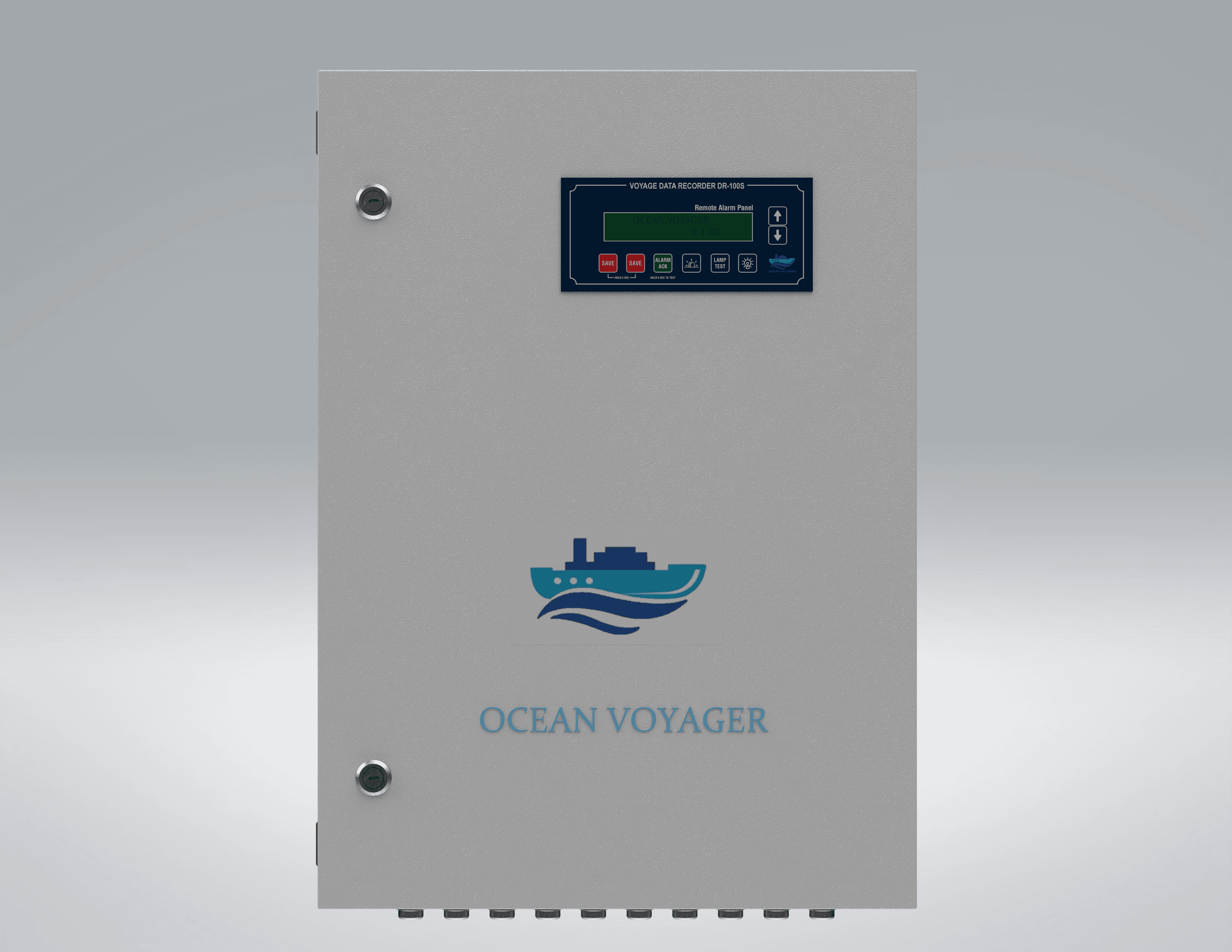

Simplified Voyage Data Recorder

Simplified Voyage Data Recorder

A Simplified Voyage Data Recorder for existing cargo vessels, with the essential data set, a reduced footprint and lower cost of compliance.

IMO MSC.163(78)IEC 61996-2

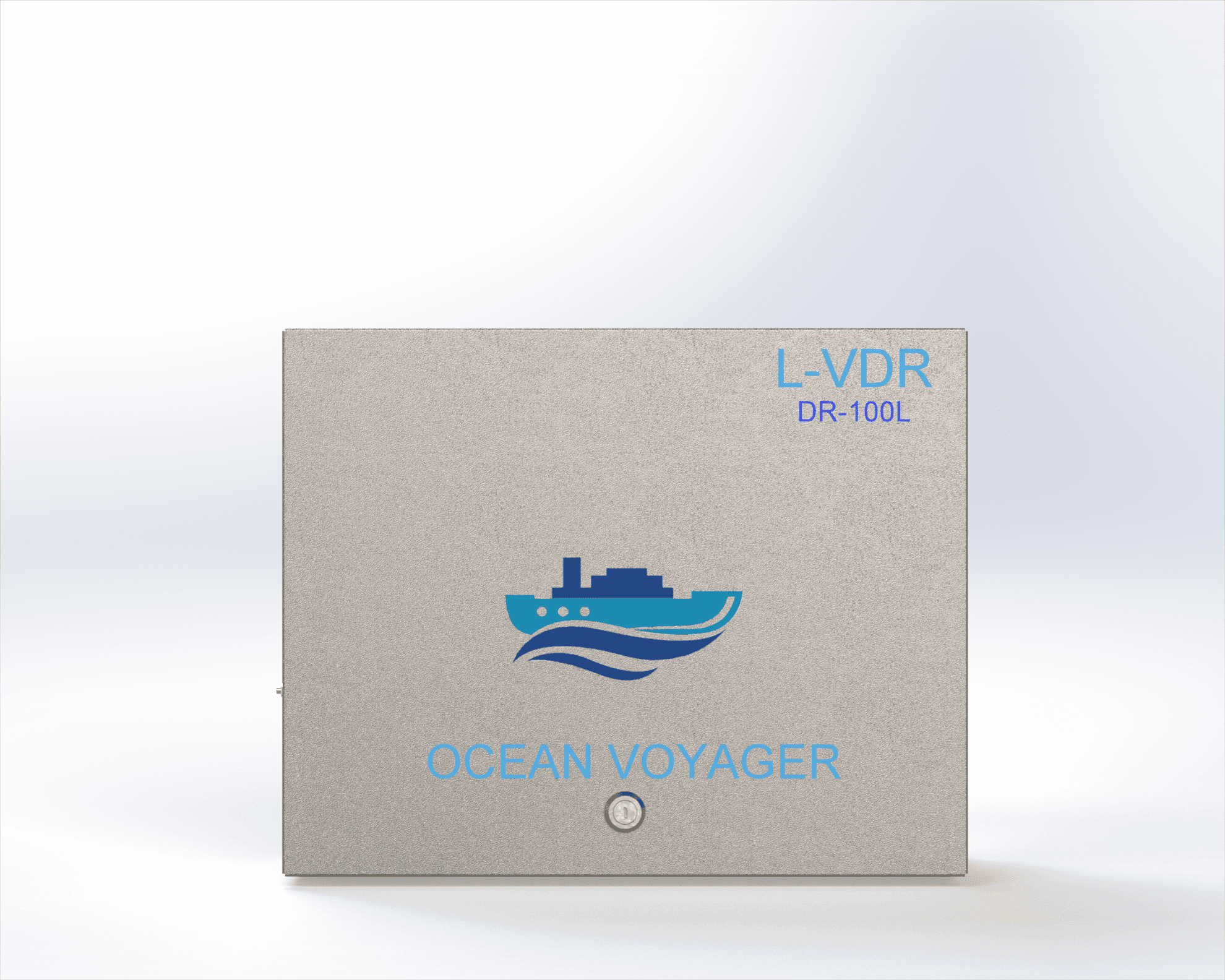

Light Voyage Data Recorder

Light Voyage Data Recorder

A compact, lightweight VDR for small vessels and special applications, giving minimum essential recording in a minimal form factor.

IEC 61996-2IEC 60945

Course Recorder

CRD-724Course Recorder

Course Recorder

Continuous course recorder that logs a time-stamped PDF heading chart to a front-panel USB, giving a reliable audit trail for navigation and casualty investigation.

Repeater Displays

05 PRODUCTS

Digital bridge displays for echo sounder, heading, ROT, speed and wind, with NMEA 0183 input and rugged panel-mount.

Echo Sounder Repeater

Echo Sounder Repeater

Large-digit bridge display repeating depth data from any IEC 61162 (NMEA 0183) echo sounder output.

DPT / DBT / DBK sentences7 inch LED display

Digital Bearing Compass Repeater

Digital Bearing Compass Repeater

3½-digit heading display repeating HDT / HDM sentences at 0.1° resolution for precise course monitoring at any bridge position.

0.1° heading resolutionHDT / HDM sentences

ROT Repeater

ROT Repeater

Rate-of-turn repeater display with an analogue-style needle and digital readout for helm and conning positions.

ROT sentence input7 inch LED display

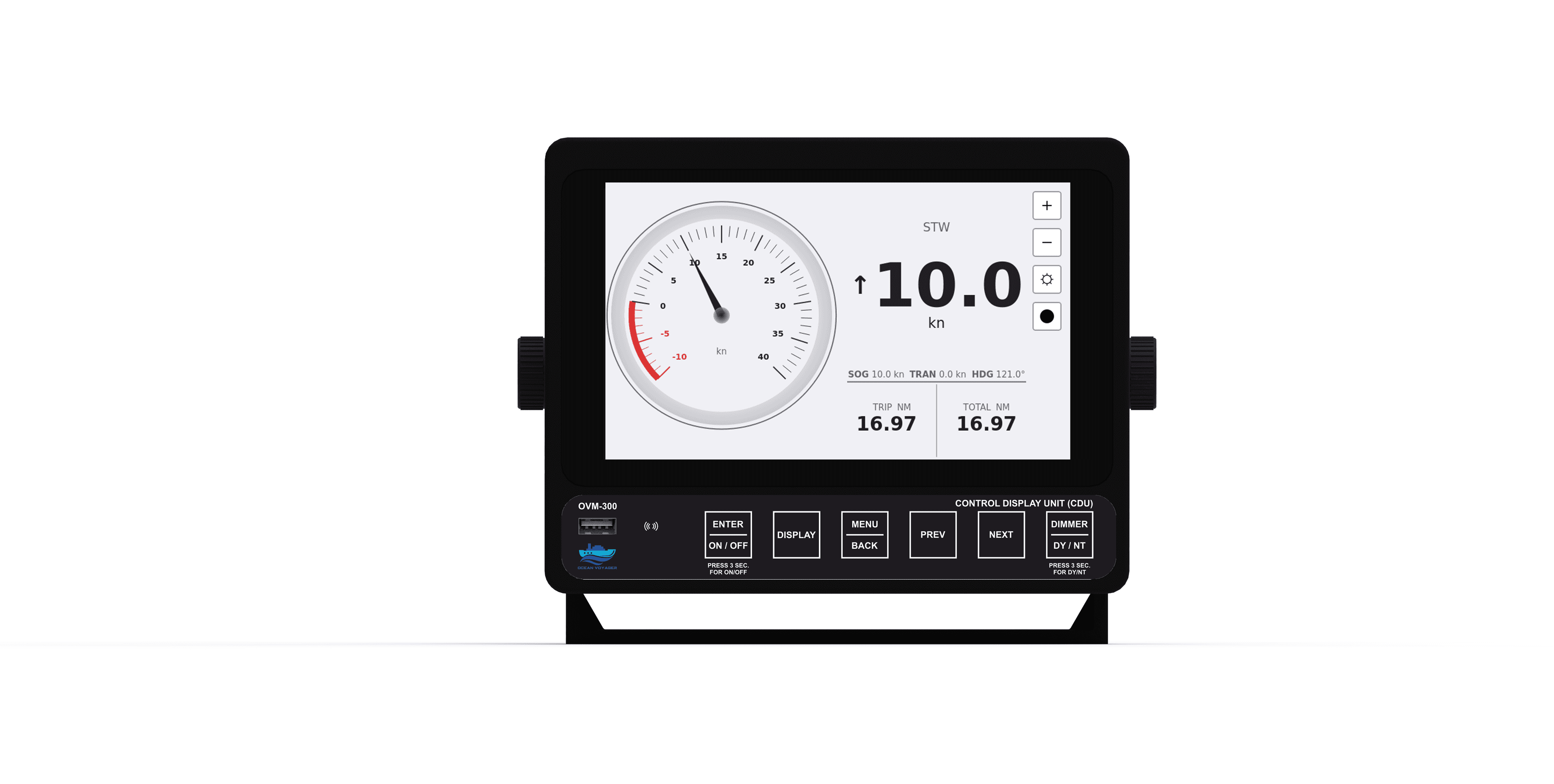

Speed and Distance Repeater

Speed and Distance Repeater

Dual-channel display showing speed-through-water and distance run, with VTG / VHW input from any NMEA speed log.

Speed (kn) + distance (nm)VTG / VHW sentences

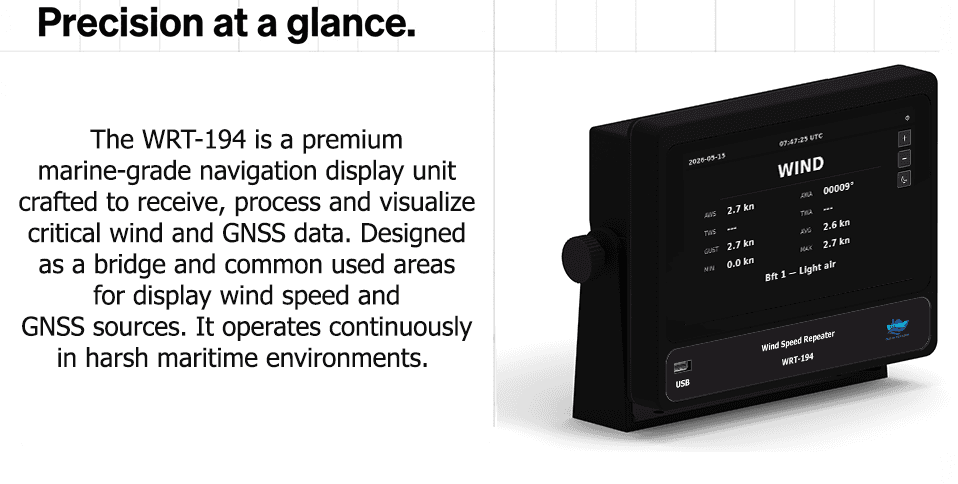

Wind Speed Repeater

Wind Speed Repeater

Wind speed and direction repeater for bridge and wheelhouse, with MWV / MWD input and switchable units (kn / m/s / Bft).

7 inch LED displayMWV / MWD sentences

Repeater Units

01 PRODUCT

Synchro and step-signal bearing repeater compass for gyro distribution on the bridge.

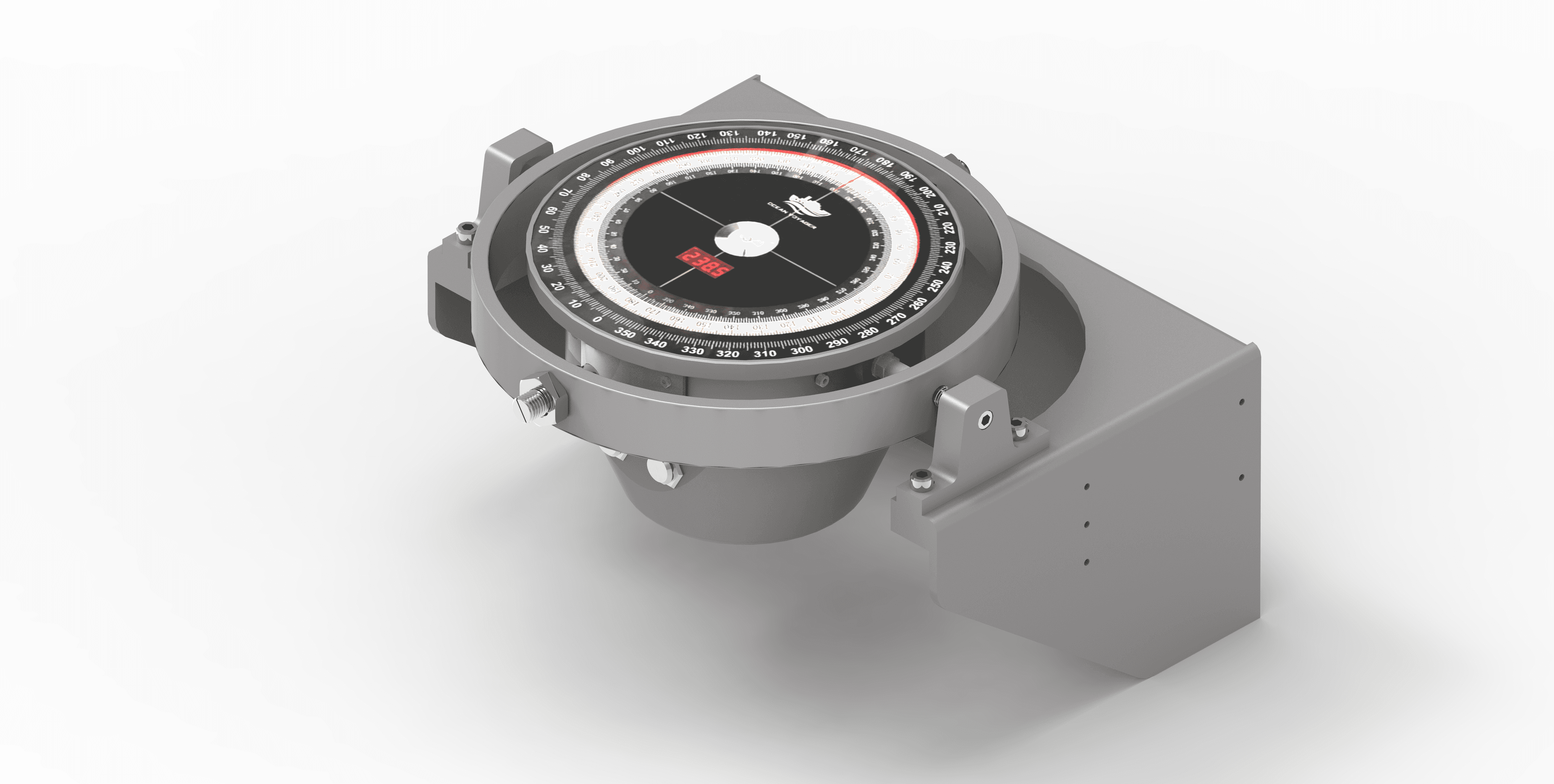

Bearing Repeater Compass

Bearing Repeater Compass

Gyrocompass bearing repeater that accepts synchro or step input and provides a compass card readout at any remote location.

Synchro & step inputCompass card display

Marine Data Handling

09 PRODUCTS

Signal routing and conversion devices for NMEA 0183 networks, including duplicators, baud converters, step converters and expanders.

CODENAME / FUNCTION

NMEA 0183 sentence multiplexer with 2 inputs and 8 isolated outputs that simultaneously routes bridge data across RS-232 and RS-422 networks with 1000 VDC port isolation.

Baud Rate Converter

NMEA 0183 baud rate converter with galvanic isolation that converts 4800 bps instrument data to faster network baud rates with simultaneous RS-232 and RS-422 output.

NMEA to Step Converter

Converts NMEA 0183 HDT heading sentences to gyrocompass step or synchro output for legacy repeater distribution.

Multi-function signal converter combining baud rate conversion, NMEA duplication and format translation in one compact unit.

NMEA 0183 sentence multiplexer with 3 inputs and 16 isolated outputs that simultaneously routes bridge data across RS-232 and RS-422 networks with 1000 VDC port isolation.

NMEA to Coursebus Converter

Converts NMEA 0183 HDT heading sentences into Coursebus heading data. It accepts a 4800 bps NMEA input and drives a 1000 VDC isolated 9600 bps RS-422 Coursebus output for course repeater distribution.

HEHDT Simulator

Heading-sentence simulator that generates NMEA 0183 $HEHDT heading data on a 1000 VDC isolated 4800 bps RS-422 output for testing and commissioning heading repeaters and bridge instruments.

Coursebus Simulator

Coursebus data simulator that generates a Coursebus heading-data stream on a 1000 VDC isolated 9600 bps RS-422 output for testing and commissioning Coursebus repeater networks.

Coursebus to NMEA Converter

Converts Coursebus heading data back into NMEA 0183. It accepts a 9600 bps Coursebus input and outputs $HEHDT heading sentences on a 1000 VDC isolated 4800 bps RS-422 port.
