REPEATER DISPLAY

Echo Sounder Repeater

Large-digit bridge display repeating depth data from any IEC 61162 (NMEA 0183) echo sounder output.

✓DPT / DBT / DBK sentences✓7 inch LED display✓Shallow water alarm✓24 VDC

1 / 2

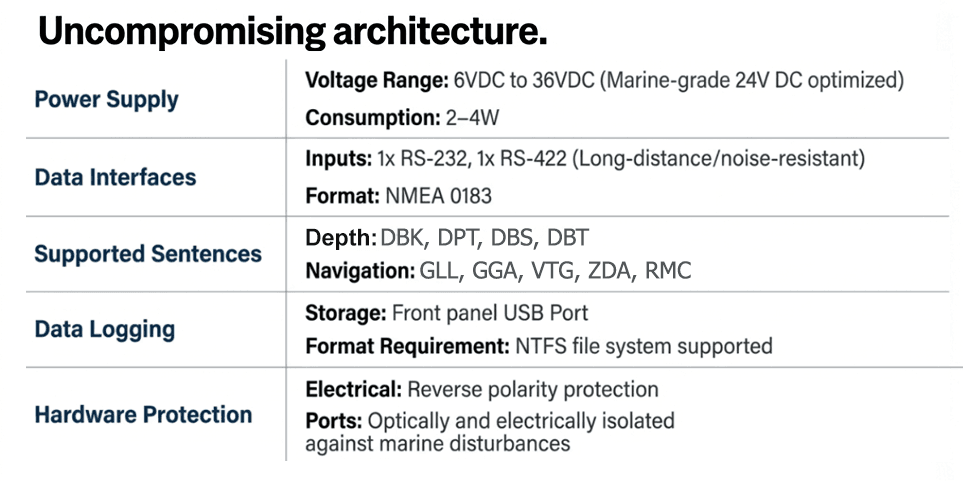

Technical specification

Model	ECR-455
Product Type	Marine Navigation Display Unit
Input Voltage	6–36 VDC (24 VDC Optimized)
Power Consumption	2–4 W
Serial Inputs	1 × RS-232, 1 × RS-422
Data Format	NMEA 0183
Supported Sentences	DBK · DPT · DBS · DBT · GLL · GGA · VTG · ZDA · RMC
Data Logging	Front Panel USB Port (Optional)
Reverse Polarity Protection	Supported
Port Isolation	Optically and Electrically Isolated
