REPEATER UNIT

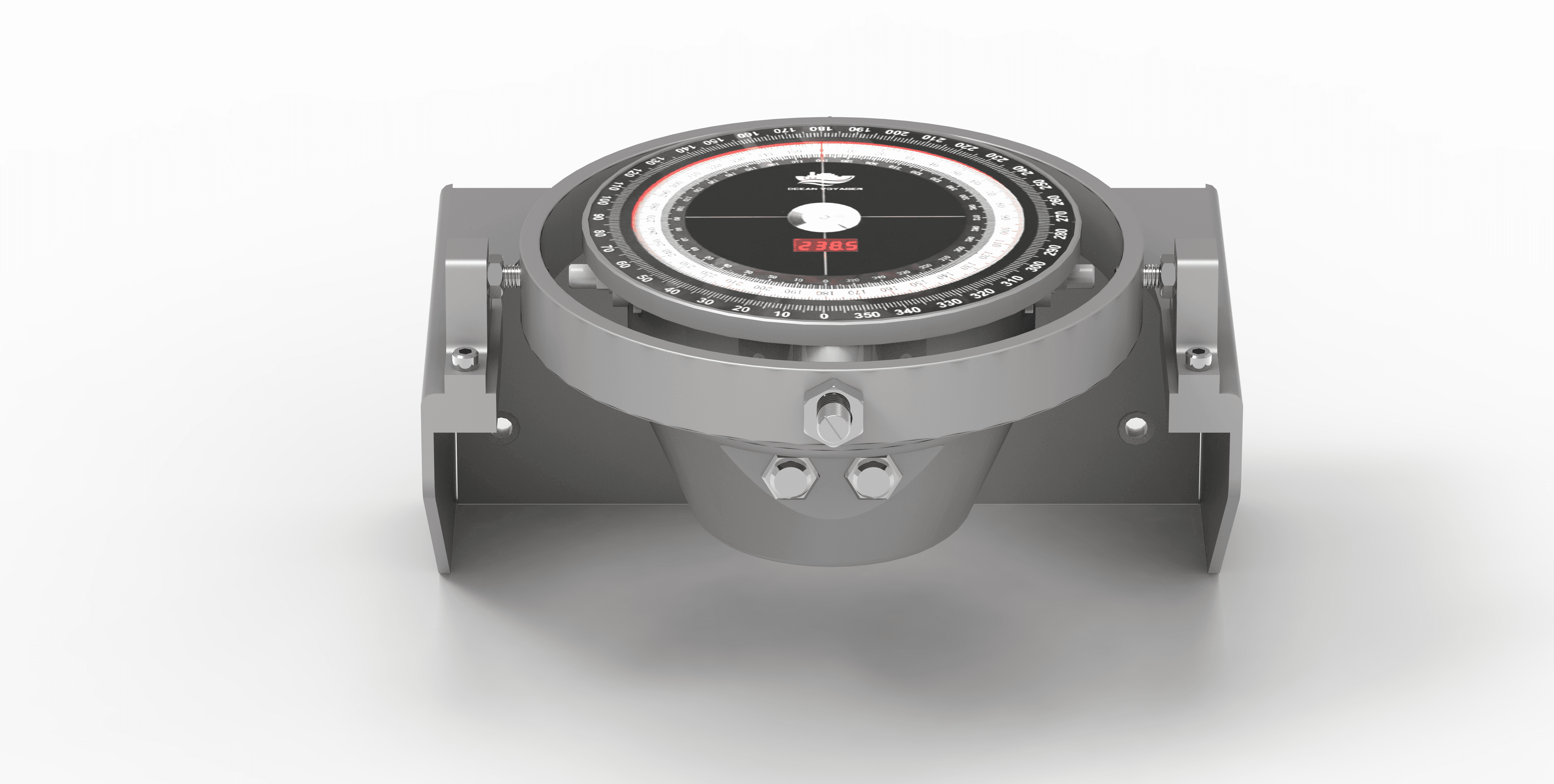

Bearing Repeater Compass
Gyrocompass bearing repeater that accepts synchro or step input and provides a compass card readout at any remote location.
✓Synchro & step input✓Compass card display✓360° continuous rotation✓Vibration-resistant
1 / 2Technical specification
| Model | HDG-100 |
| Product Type | Gyrocompass Repeater |
| Input Voltage | 18–32 VDC |
| Serial Inputs | RS-422 |
| Data Format | NMEA 0183 |
| Supported Baud Rates | 2400 · 4800 · 9600 · 19200 · 38400 bps |
| Supported Sentences | HDT · HDM · HDG · VTG |
| Primary Display | 360° Mechanical Dial |
| Secondary Display | 4-Digit Digital LED Display |
| Control Method | 2-Button Menu Access |
| Memory | Non-Volatile Memory |
