SIGNAL INTERFACE

NMEA to Step Converter

Converts NMEA 0183 HDT heading sentences to gyrocompass step or synchro output for legacy repeater distribution.

✓NMEA HDT → step output✓Gyro repeater compatible✓Configurable step rate✓Opto-isolated

// PRODUCT SHOT — PM316

Technical specification

Input	NMEA 0183 — HDT sentence
Output	Gyrocompass step signal (placeholder step rate)
Step rate	Configurable (placeholder)
Accuracy	±0.1° (placeholder)
Isolation	Opto-isolated output
Power supply	12 / 24 VDC
Operating temp.	−15 °C … +55 °C (placeholder)

* VALUES MARKED "PLACEHOLDER" PENDING CONFIRMATION FROM OCEAN VOYAGER ENGINEERING.

Also in this family

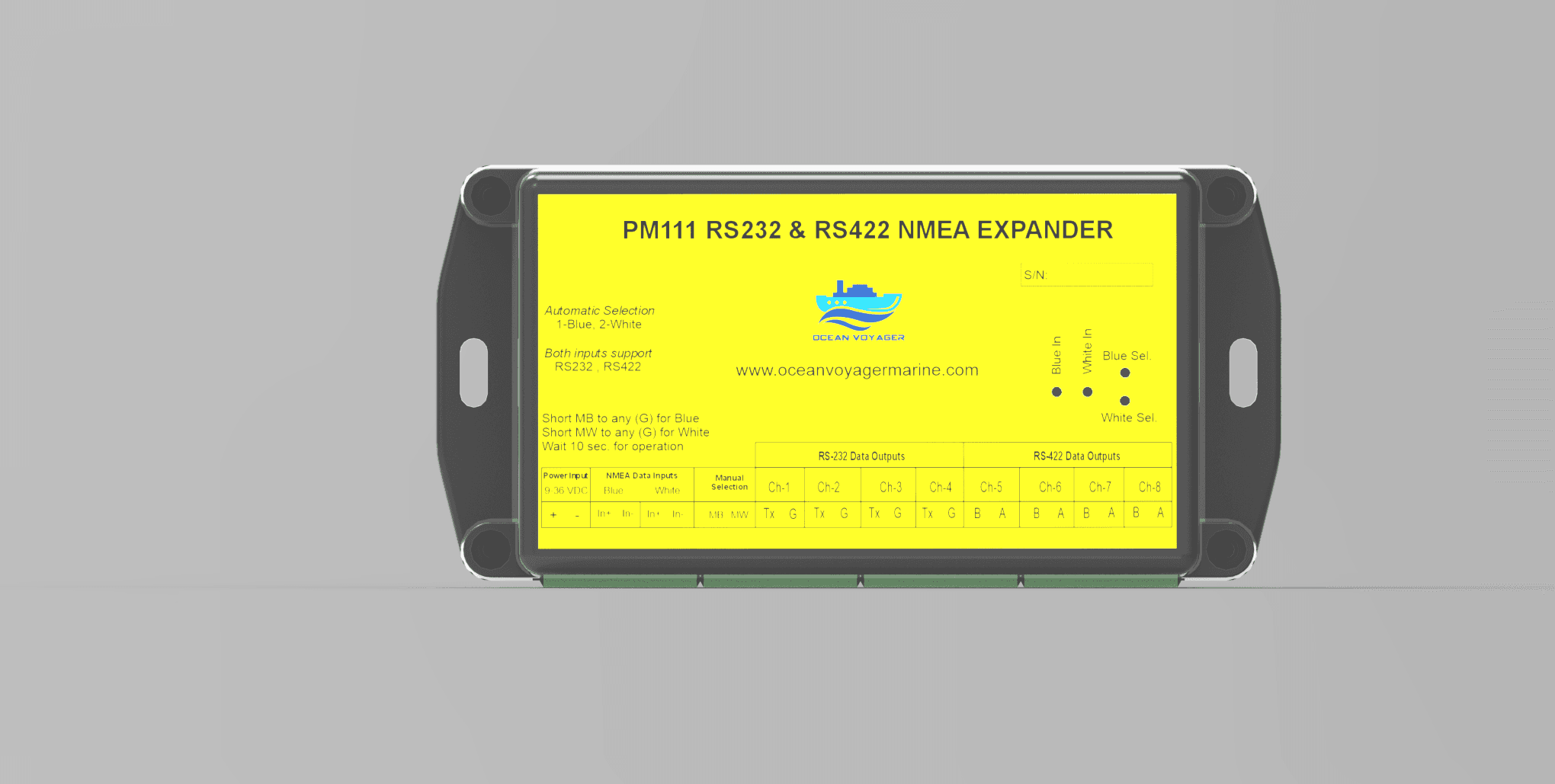

Duplicates one NMEA 0183 input sentence stream to multiple isolated outputs — preserving signal integrity across the bridge network.

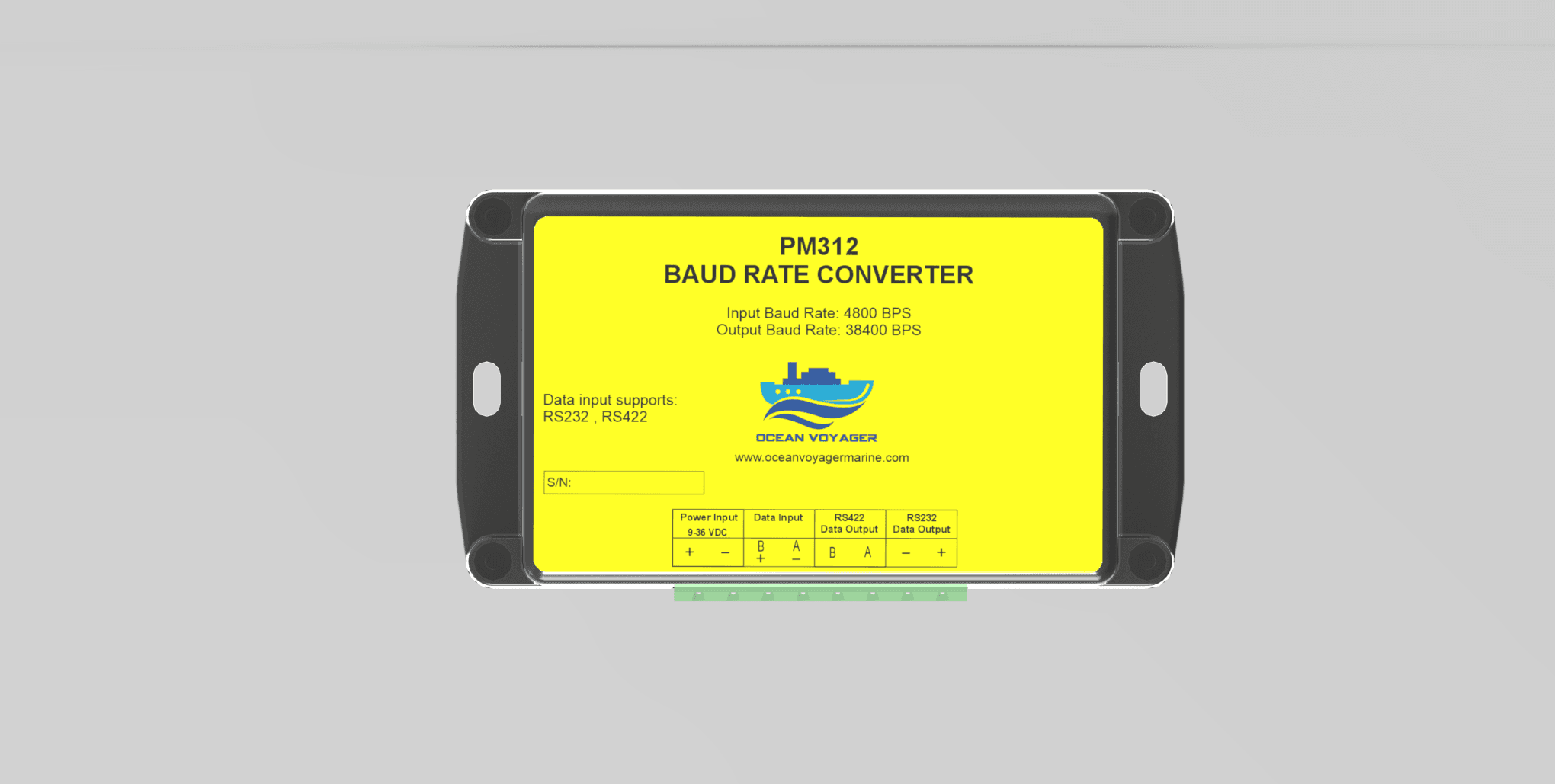

Bidirectional NMEA baud rate converter — bridges 4800 baud instruments to 38400 baud networks and vice versa.

Multi-function signal converter combining baud rate conversion, NMEA duplication and format translation in one compact unit.
