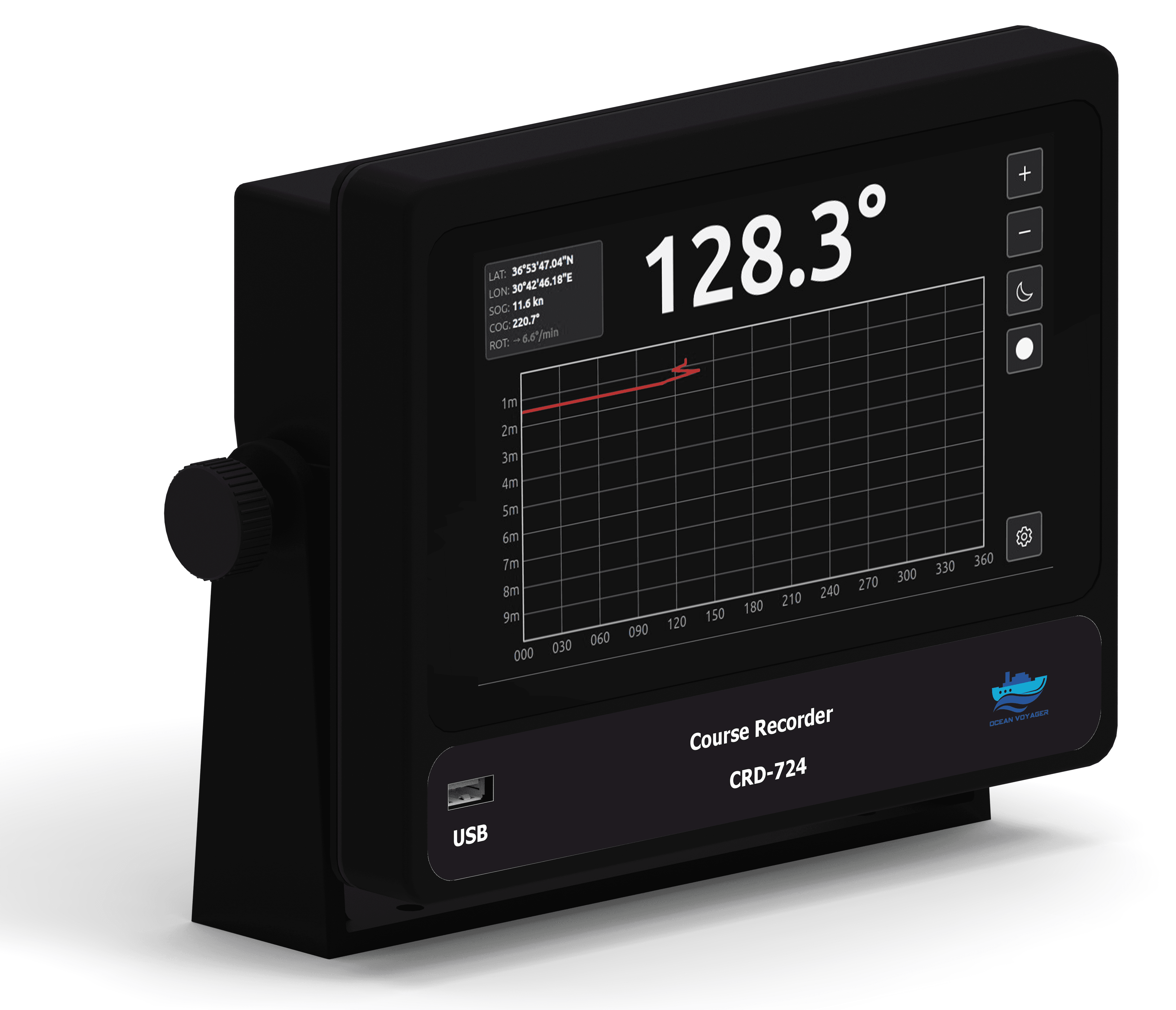

Course Recorder

Continuous course recorder that logs a time-stamped PDF heading chart to a front-panel USB, giving a reliable audit trail for navigation and casualty investigation.

✓Continuous heading record✓PDF chart logged to USB✓NMEA 0183 input✓Time-stamped trace
Course Recorder (CRD-724) — 1/21 / 2
Technical specification
ModelCRD-724
Product TypeMarine Navigation Display System
Input Voltage6–36 VDC (24 VDC Optimized)
Power Consumption2–4 W
Serial Inputs1 × RS-232, 1 × RS-422
Data FormatNMEA 0183
Supported SentencesHDT · HDG · HDM · THS · ROT
Data LoggingPDF chart log to front-panel USB port
Reverse Polarity ProtectionSupported
Port IsolationOptically and Electrically Isolated
